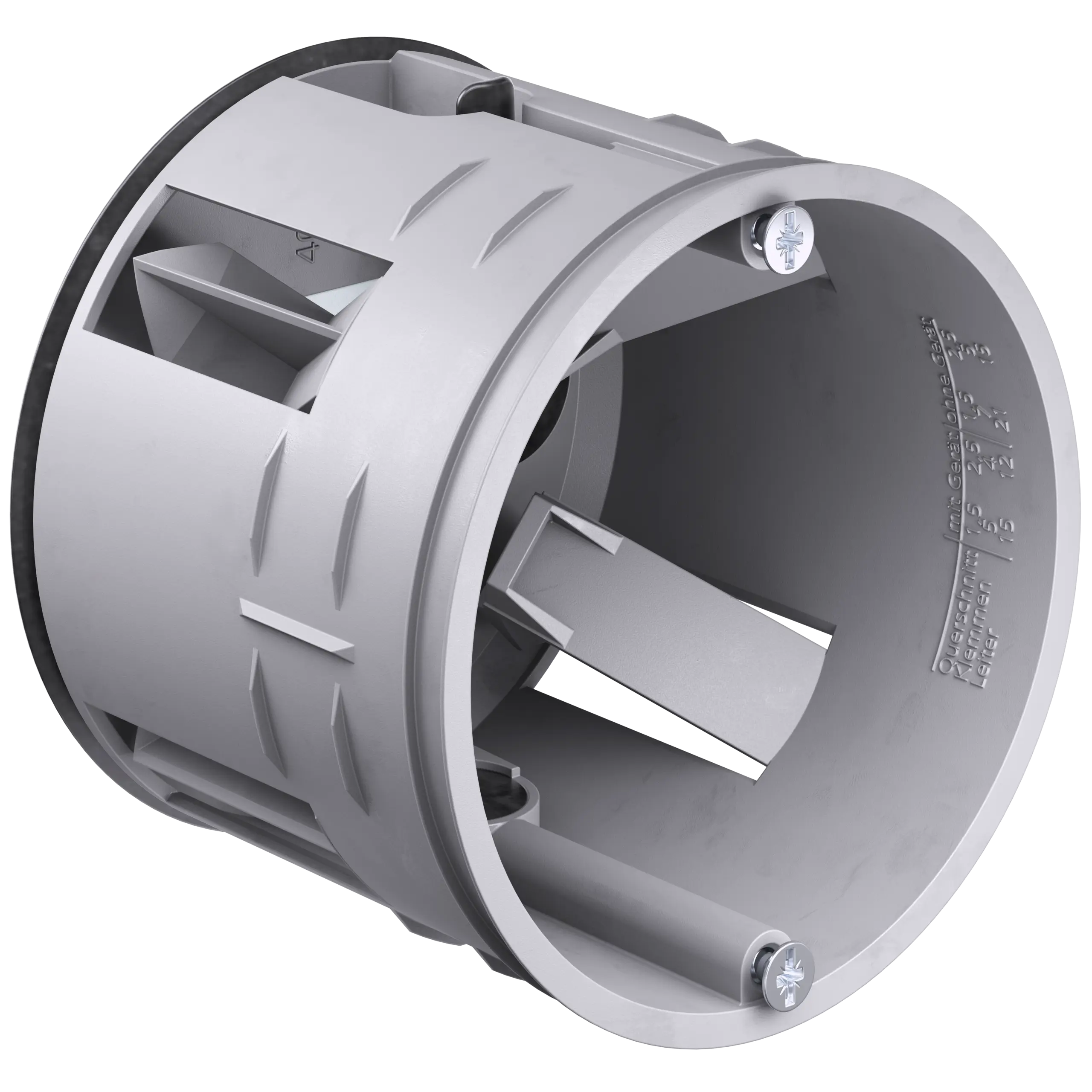

One-gang junction box ECON® Styro 55 with 4 swivels with ribs and sealing lip

One-gang junction box ECON® Styro55
One-gang junction box ECON® Styro55 is the solution for retrofitting various built-in appliances in external thermal insulation composite systems (ETICS) with EPS/XPS or comparable insulating materials that have already been plastered. The special swivelling cutting edges ensure secure mechanical fastening in the insulation material. Switches, sockets, intercom systems and much more can be permanently attached easily, quickly, securely and without heat bridges.

Air-tight and heat bridge-free electrical installation in accordance with DIN 18015-5 in ETICS
Suitable for EPS/XPS (and comparable insulation materials) from a bulk density of 15kg/m³
Secure mechanical anchoring in the ETICS thanks to 4 swivelling cutting edges
Special cutter (Art. No. 1088-07) prevents damage to the cable
Sealing lip prevents moisture penetration
Making of combinations is possible

More information

Data Sheet:
View

Certificate:
Heat bridge calculation – Test report
