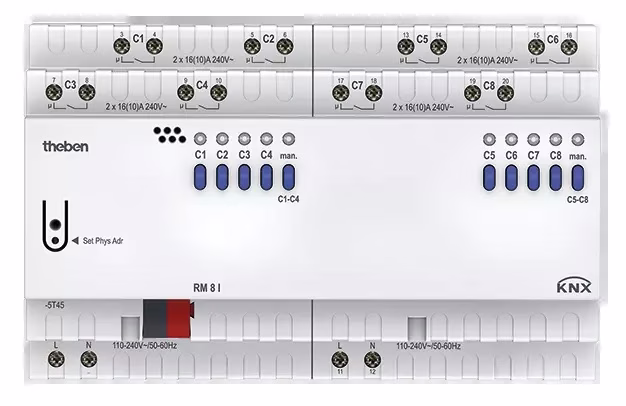

KNX 8-way switch actuator, C load

KNX 8-way switching actuator C-load with relay outputs for 8 switching channels, series installation housing, width 8 TE, LED switching status indicator for each channel, manual switch with status indicator (even without bus voltage), links, contact type (normally open/normally closed) and participation in central commands such as permanent on, permanent off, central switching and scene storage/retrieval, switching functions: On/Off, Pulse, On/Off delay, Staircase lighting with warning according to DIN 18015-2, logical links: Lock, AND, Enable, OR, Feedback object for each channel, Central objects with and without priority, Recall and save scenes (object), Scene object for each channel

Download more information

More information

Data Sheet:
View
