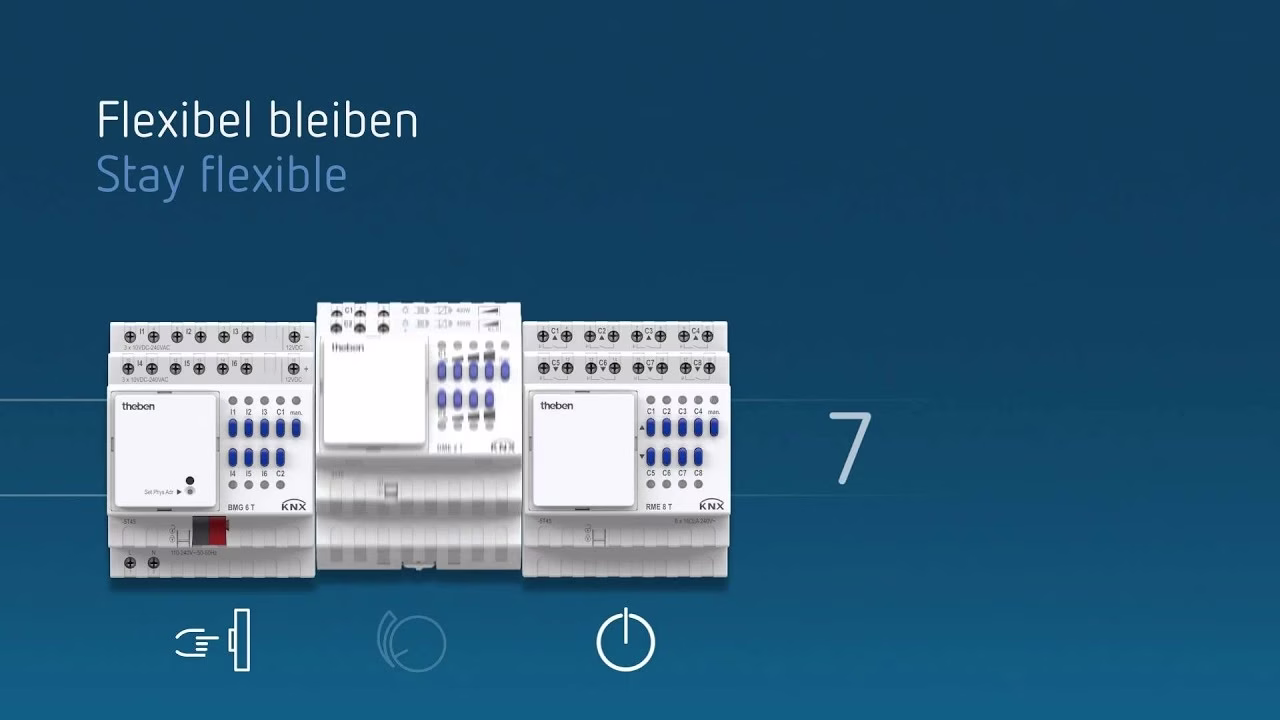

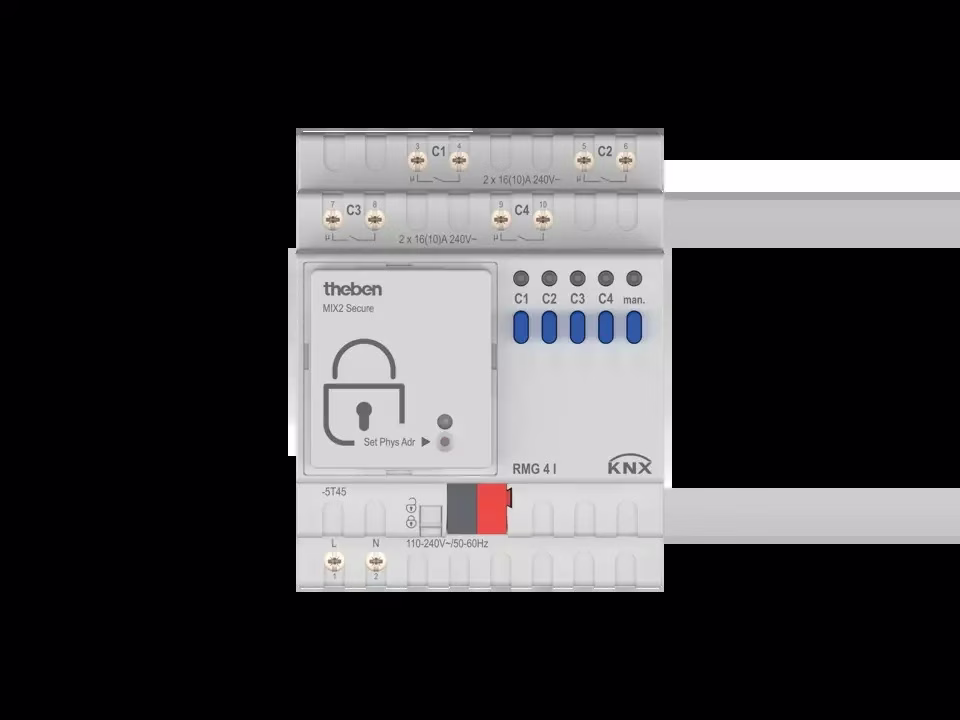

KNX 4-way switching actuator C-load with relay outputs for 4 switching channels, expandable with RME 4 I to up to 12 channels, series installation housing, width 4 TE, C-load, basic device and bus coupling are mechanically separable and can be replaced independently of each other. LED switching status display for each channel, manual switch with status display (even without bus voltage), links, contact type (normally open/normally closed) and participation in central commands such as permanent on, permanent off, central switching and scene storage/retrieval, switching functions: On/off, pulse, on/off delay, staircase lighting with warning according to DIN 18015-2, logical links: lock, AND, enable, OR, feedback object for each channel, central objects with and without priority, recall and save scenes (object), scene object for each channel
