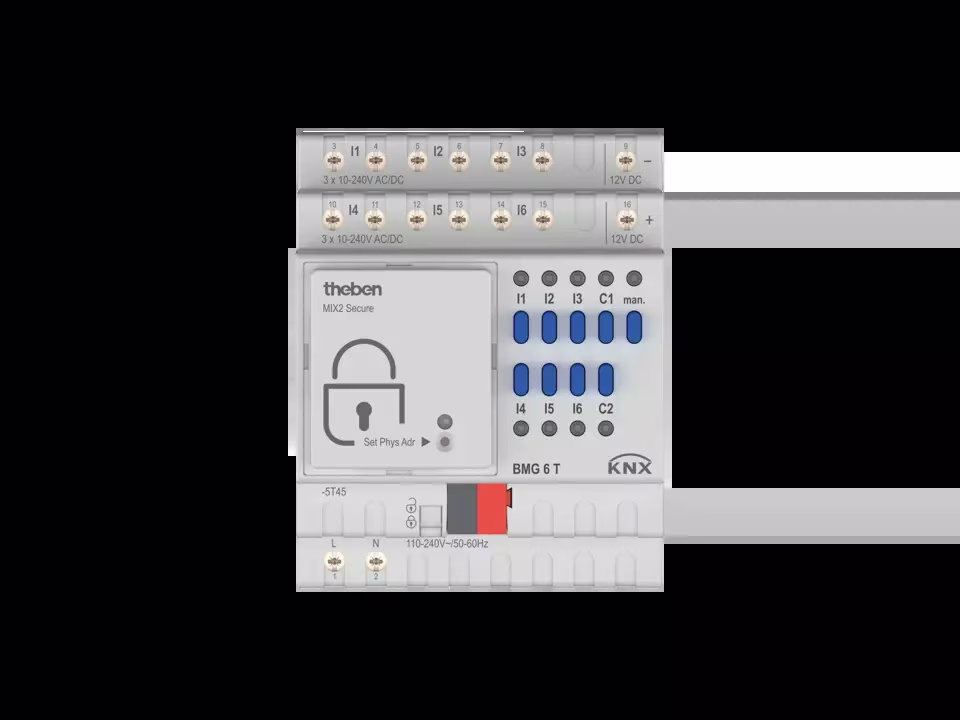

Binary input for 6 channels, basic device, expandable with BME 6 T up to 18 channels or other MIX expansion devices, series installation housing width 4 TE, multi-voltage inputs 8-250V AC/DC, auxiliary voltage for potential-free inputs is supplied by the device, all inputs can be operated with different voltages, LED status display for all inputs, functions: blocking object and 2 output objects per channel, behavior upon bus return adjustable, software functions: switch/button, dimming, blind, value transmitter, counter
Atsisiųsti daugiau informacijos
Duomenų lapas:
Peržiūrėti
