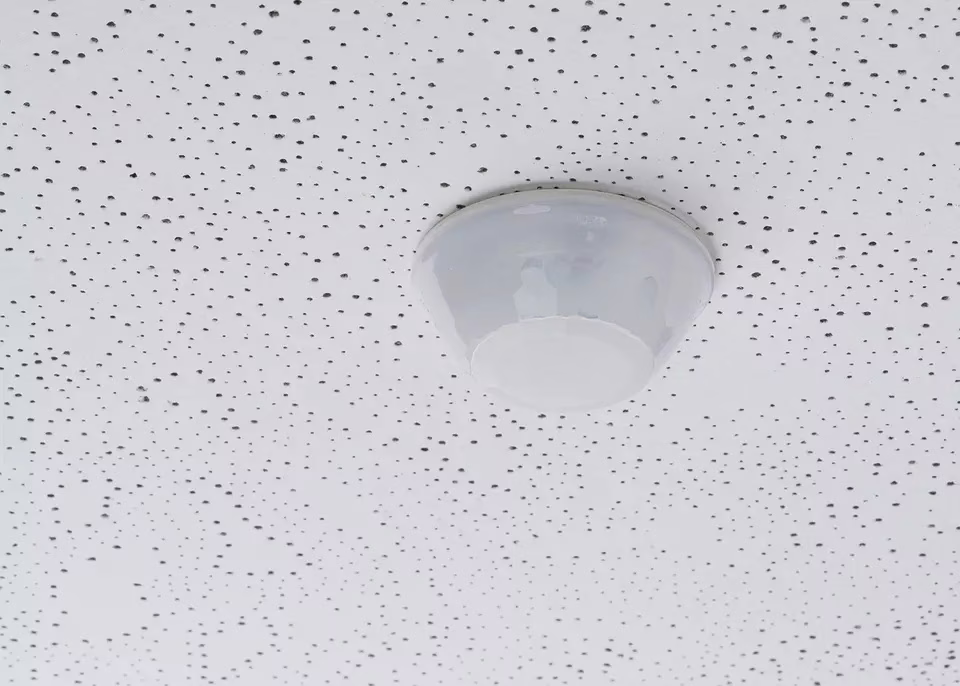

Presence detector (PIR) for indoor DE ceiling mounting, detection range 28 x 5 m at 3 m mounting height for corridors, for KNX bus system, 2 channels for lighting and 2 channels for presence for HVAC control, 2 channels for lighting with 1 light measurement, automatic lighting control with constant light control or switching mode, dimmable lighting in switching mode with and without daylight influence, integrated temperature sensor, day/night switching via telegram, standby functionality (orientation light), 3 logic channels (AND/OR/XOR), KNX Data-Secure, operation as full or semi-automatic possible, manual override via external KNX button possible, directional brightness measurement (mixed light measurement), easy adjustment of brightness measurement, short-term presence, selectable control speed, Teach-in function, scene functionality, lock functions, switch-on delay and follow-up time presence adjustable, extension of the detection range through parallel connection, detection sensitivity adjustable for outdoor use, test mode for checking function and detection range, setting via ETS software (full range of functions), setting via remote control/APP or APP (BLE)
