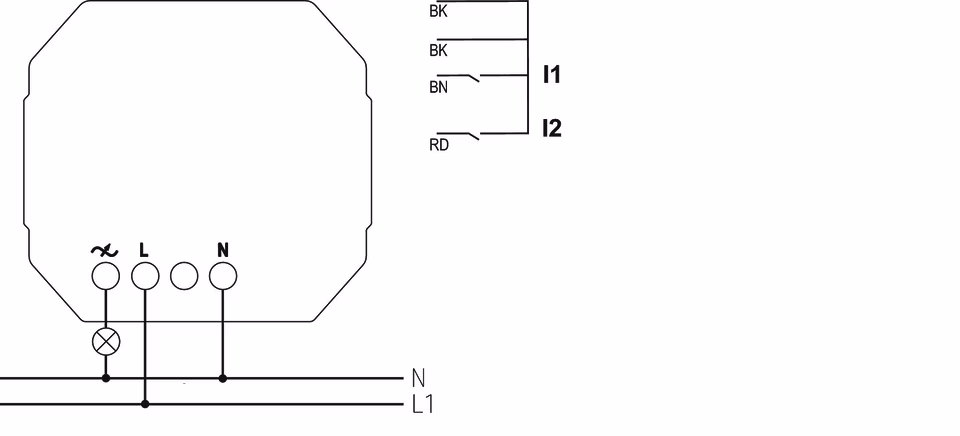

LUXORliving 1-gang wireless dimming actuator for Smart Home LUXORliving SMARTstart, Secure communication via KNX-RF with support for KNX Data Secure, Optimized dimming output for dimmable energy-saving lamps, LED, incandescent and halogen lamps, and dimmable transformers, Easy adaptation to different light sources through automatic load detection, Adjustable dimming curve for precise and flicker-free dimming, 2 binary inputs for potential-free contacts such as push buttons, switches, temperature sensors (I2), The binary inputs are assigned to the dimming output ex works (function test before programming), Integrated temperature monitoring for increased operational safety, e.g., in case of overload
Data Sheet:
View
