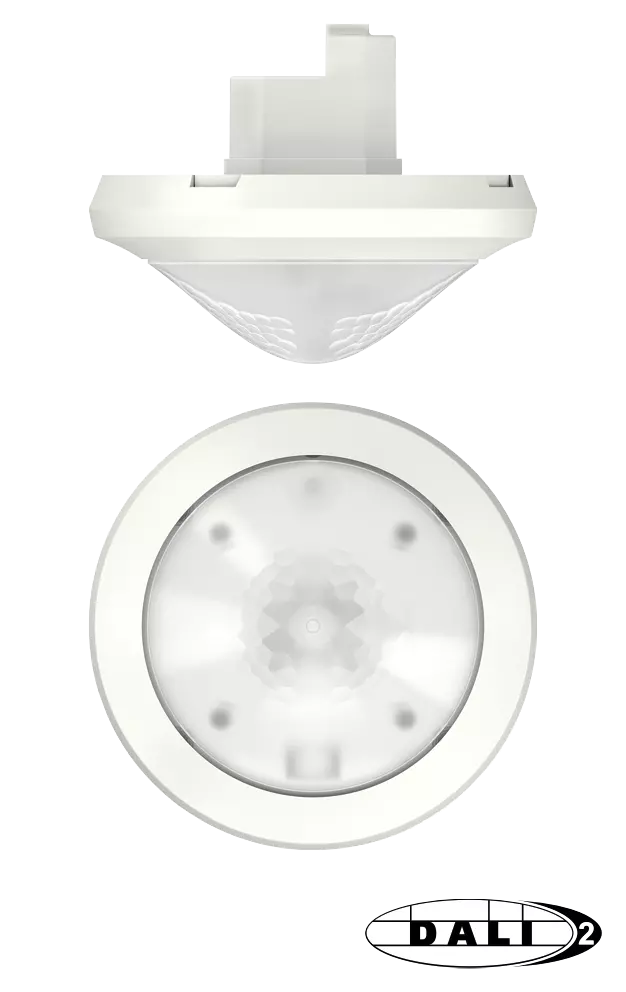

Flush-mounted presence detector for ceiling mounting, DALI interface, detection range 30 x 4.5 m switchable to 15 x 4.5 m (for walking persons) at 3 m mounting height, mounting height up to 6 m, 1 light channel broadcast switchable to 2 addressable light channels, max. 50 DALI ECGs, constant light control or switching mode with dimmable lighting, standby dimming value continuously adjustable from 1-25% as orientation light, additional channel for external DALI relay, 2 light measurements, 2 push-button inputs, switchable between fully automatic and semi-automatic operation, teach-in, staircase lighting function, short-term presence, remote controllable, light measurement 10-3000 lux, easy light measurement adjustment, adjustable sensitivity, operating voltage 110-230 V AC, 50/60 Hz, power consumption 0.4 W, protection class IP 54, white housing
Data Sheet:
View
