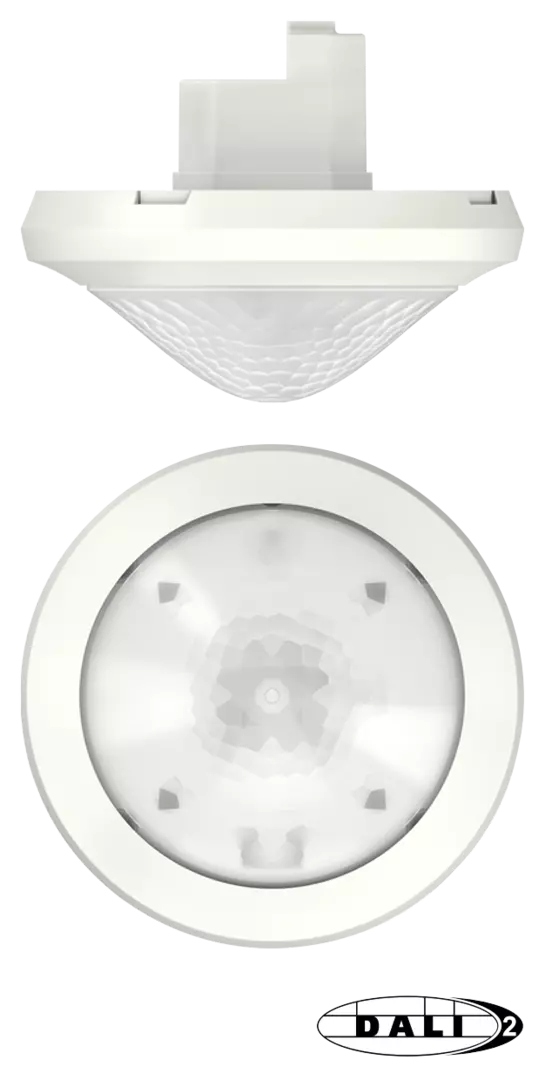

Passive infrared presence detector as a basic item for the DALI-2 Room Solution, for flush-mounted ceiling installation, DALI-2 certified, round detection range 360°, diameter 24 m, (452 m2) at 3 m mounting height, DALI-2 addressable up to 4 channels of light, evaluates the information from the DALI push button interfaces and controls the actuators such as DALI ECGs or DALI relays in accordance with the DALI-2 standard, color temperature control based on the time of day HCL (Human Centric Lighting), Operation with RGBW light sources, time-controlled actions via integrated timer, flexible assignment of up to 4 lighting groups, plus up to 4 switching groups and 2 presence groups via app remote control, Constant light control or dimmable lighting in switching mode with and without daylight influence, orientation light, switching mode and constant light control without presence influence, adaptive 3-channel light measurement. DALI-2 Room Solution functions: The DALI-2 Room Solution is a DALI-2 single-room solution that handles all aspects of lighting control. Compared to DALI presence detectors, the DALI-2 Room Solution offers new functionalities such as HCL function, TW/RGB functionality, time-controlled functions, and more. All key components (presence detector, switch actuator, push-button interface) and the app for commissioning are available from a single source for the single-room solution.
Data Sheet:
View
