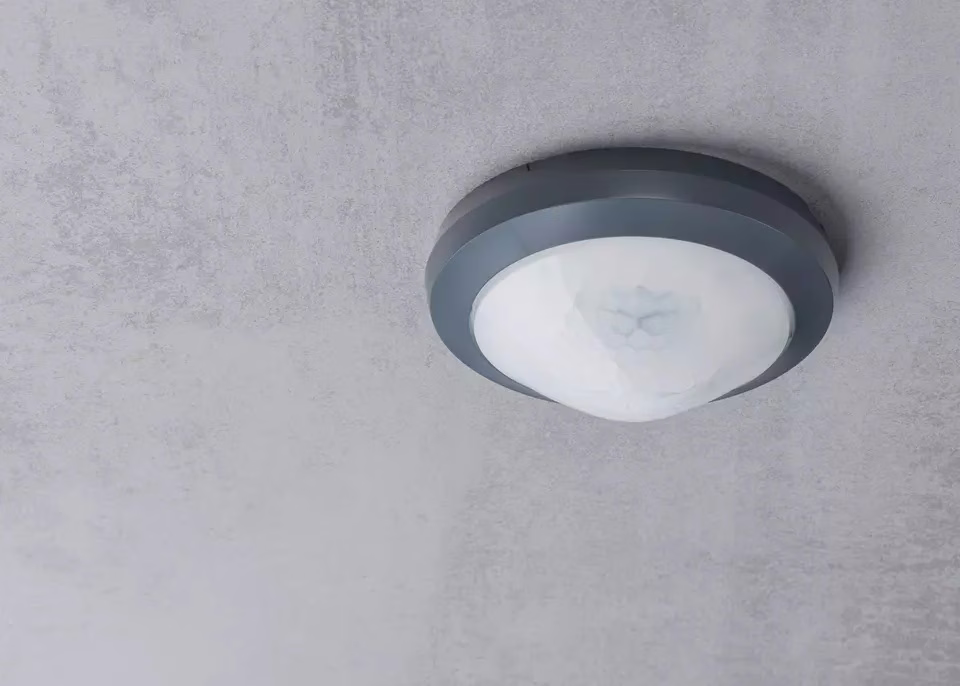

DALI corridor detector (PIR), with cable and Wieland GST18 connectors, detection range 30 x 5 m, 2 x DALI addressable/1 x DALI broadcast

DALI corridor detector (PIR), with cable and Wieland GST18 plugs, detection range 30 x 5 m, 2 x DALI addressable/1 x DALI broadcast, 1 push-button input, cable length 0.9 m, detection range switchable to 15 x 5 m (for walking persons), mounting height up to 6 m, 1 light channel broadcast switchable to 2 light channels addressable, max. 50 DALI ECGs, constant light control or switching mode with dimmable lighting, standby dimming value continuously adjustable from 1-25% as orientation light, additional channel for external DALI relay, 2 light measurements, 2 push-button inputs, switchable between fully automatic and semi-automatic operation, teach-in, staircase lighting function, short-term presence, remote controllable, light measurement 10-3000 lux, easy light measurement adjustment, adjustable sensitivity
