KNX slēdža izpildmehānisms, 8 kanāli, 25 A, C slodze

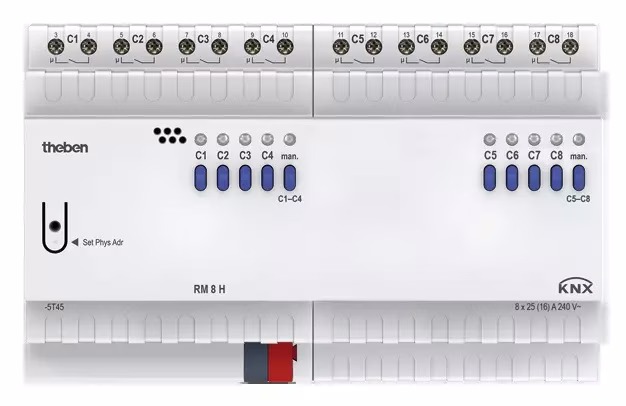

KNX 8-way switching actuator, 25 A, with relay outputs for 8 switching channels, series installation housing, width 8 TE, C load, LED switching status indicator for each channel, manual switch with status indicator (even without bus voltage), links, contact type (normally open/normally closed) and participation in central commands such as permanent on, permanent off, central switching and scene save/recall, switching functions: On/Off, Pulse, On/Off delay, Staircase lighting with warning according to DIN 18015-2, logical links: Lock, AND, Enable, OR, Feedback object for each channel, Central objects with and without priority, Recall and save scenes (object), Scene object for each channel

Lejupielādēt vairāk informācijas

Vairāk informācijas

Datu lapa:
Skatīt
