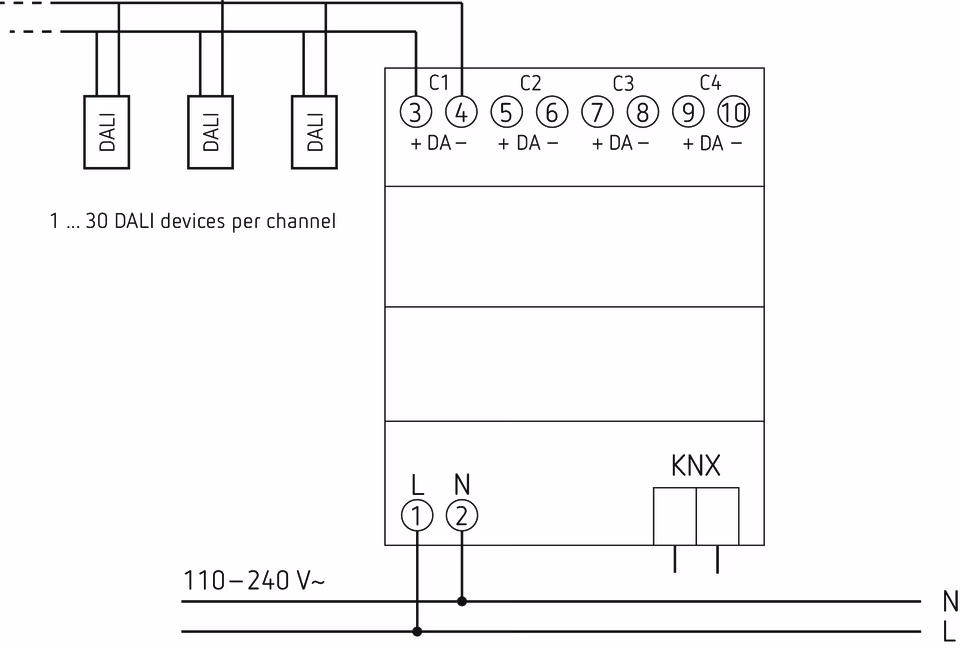

4-way DALI actuator LUXORliving, DALI-2 certified, interface between bus system and DALI lighting system (Digital Addressable Lighting Interface), For controlling up to 30 DALI control gear devices per channel via broadcast commands, Enables very simple commissioning without the effort of addressing or grouping on the DALI side, Even in the event of a fault, DALI operating devices can be easily replaced without further programming, Internal DALI power supply with 60 mA output current per channel, In addition to classic functions such as switching, dimming, and scenes, the DALI actuator also offers color and color temperature control (Device Type 8)
Atsisiųsti daugiau informacijos
Duomenų lapas:
Peržiūrėti
