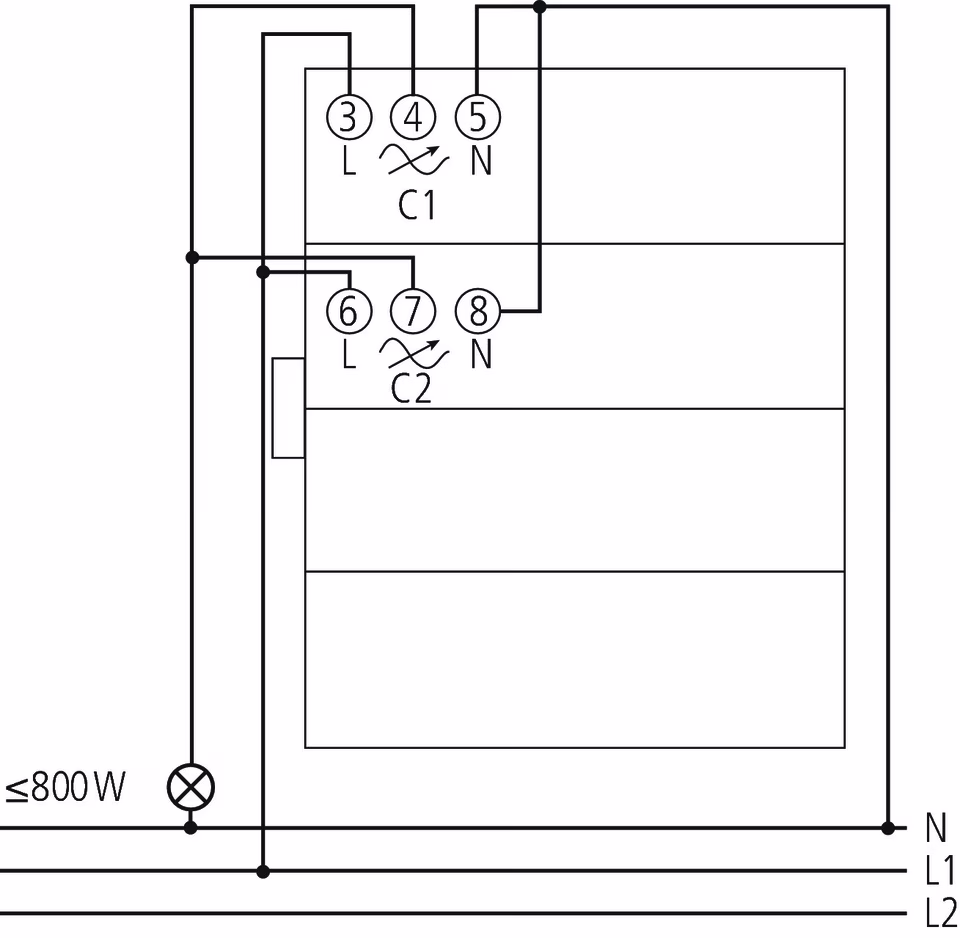

KNX universal dimming actuator 2-gang, extension device, 2 dimming outputs per module, can be used as an extension of DMG 2 T or other MIX2 base devices, series installation housing, width 4 TE, dimming range 0-100%, maximum load: 2×400 W/VA or 1x800W/VA, when using the channels as control outputs, up to 5 DMB 1 T dimming boosters with a maximum output of 5x400W/VA per channel can be controlled. For dimming incandescent lamps, low-voltage and high-voltage halogen lamps, dimmable energy-saving lamps, dimmable LED retrofit lamps. Different dimming curves enable stepless dimming of all lamp types, also suitable for controlling fans, automatic load detection (selectable), manual operation 0, 25, 50, 75, and 100% or test even without bus module, device and KNX bus module can be replaced independently of each other
Atsisiųsti daugiau informacijos
Duomenų lapas:
Peržiūrėti
