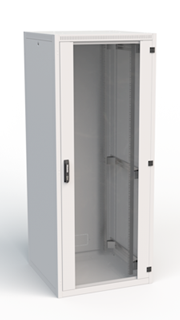

The iSEVEN Ri7 cabinets offer users an optimal balance of price, functionality, and quality.
They are a great choice for installers and end-users who want to complete projects faster and at a high quality, with a range of configuration options and accessories.
iSEVEN Ri7 cabinets are available in various sizes with a unified design.

Main advantages

  • Universal 19" cabinet for everyday IT use

  • Available in 35 different sizes

  • Preconfigured with many options

iSEVEN Ri7 cabinets are suitable for network and telecommunications equipment, computer rooms, where there are no special requirements for load capacity, cable entries, or door types.
The feature set is well balanced with a very competitive price and excellent quality.

Height: 15, 21, 27, 33, 42, 45, 48U
Width: 600 or 800 mm
Depth: 600, 800 or 1000 mm
Load capacity: Standard 500 kg (300 kg for 15U and 33U cabinets)

Doors: 4 types (G, P, S or W) – glass, metal, perforated or 86% perforated,
180° opening angle, reversible opening direction, DIN profile lock with universal key 333

Side panels: Removable and lockable

Top and bottom panels: Removable openings for ventilation units and cable entry

Base supports and wheels: Adjustable base supports, wheels, and locking wheels

Vertical rails: 2 pairs of sliding 19" L-type rails, other rail types available on request

IP rating: Standard IP30

Color: Powder coating RAL 7035 or RAL 9005, other options available

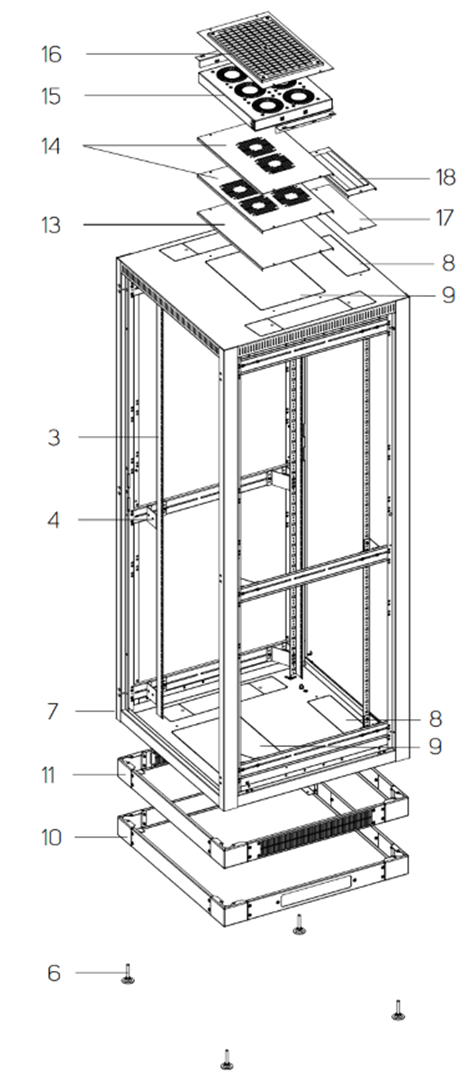

Standard configuration

  • 2 pairs of 19" sliding rails

  • Front safety glass door (EN 12150-1) with DIN profile lock and universal key 333

  • Removable lockable metal rear panel with cable entry

  • 1 pair of side panels with key

  • 4 base supports, GND/earthing

  • 28× M5 mounting screws

For 20 years, Conteg has been one of the largest manufacturers of IT, data center solutions, and industrial cabinets in Europe.

It offers telecommunications, data, industrial, and outdoor cabinets; complete data center solutions, including precision cooling systems, smart power consumption control, monitoring systems, and cable management.

https://www.conteg.com
