Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m2) - Attēls 1
Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m2) - Attēls 2
Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m2) - Attēls 3
Noklikšķiniet, lai palielinātu

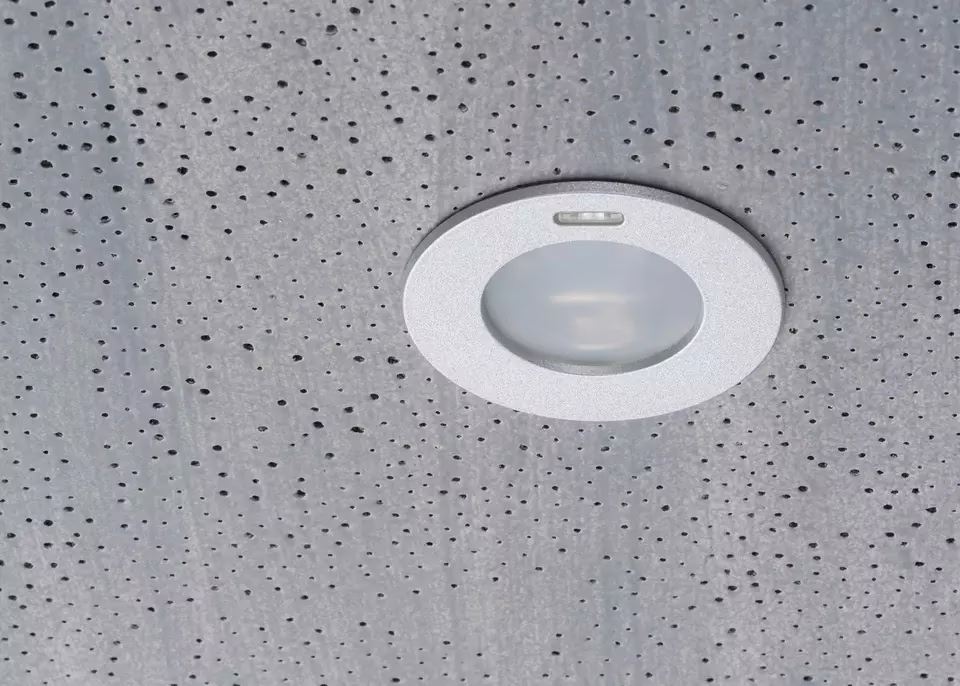

Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m2)
Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m2) - Attēls 2
Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m2) - Attēls 3

Klātbūtnes sensors griestu uzstādīšanai, DALI-2 sertificēts, laukuma noteikšanas laukums 360°, līdz 8 m x 8 m (64 m2)

SKU: T2030190

115.12€139.30€ Bez PVNAr PVNgab.

Nav noliktavā

Pievienot vēlmju sarakstam
Pievienot salīdzināšanai
Sazinieties ar mumsNav pieejams
0 Cilvēki skatās šo produktu tagad!
Papildu informācija
Svars 0.152 kg
Dimensijas 90.0 × 92.0 × 115.0 mm
Ražotājs

Theben AG
EAN

4003468200360

Apraksts

Presence sensor for ceiling installation, DALI-2 certified, square detection area 360°, up to 8 m x 8 m (64 m²), 3-way mixed light measurement, 2 instances for presence, 4 instances for brightness – interior/center/window/integral, detection zone standard/reduced, swiveling optics for adjusting the detection area, provides information about “presence” and “brightness” as a DALI telegram in accordance with IEC 62386 Part 303/304, easy adjustment of brightness measurement, Test mode for checking function and detection area, adjustable detection sensitivity, a multi-master application controller is required for commissioning/control and configuration; this must support parts 101/103 and optionally 301/303/304 in accordance with IEC 62386

Lejupielādēt vairāk informācijas

Vairāk informācijas

Datu lapa:
Skatīt
