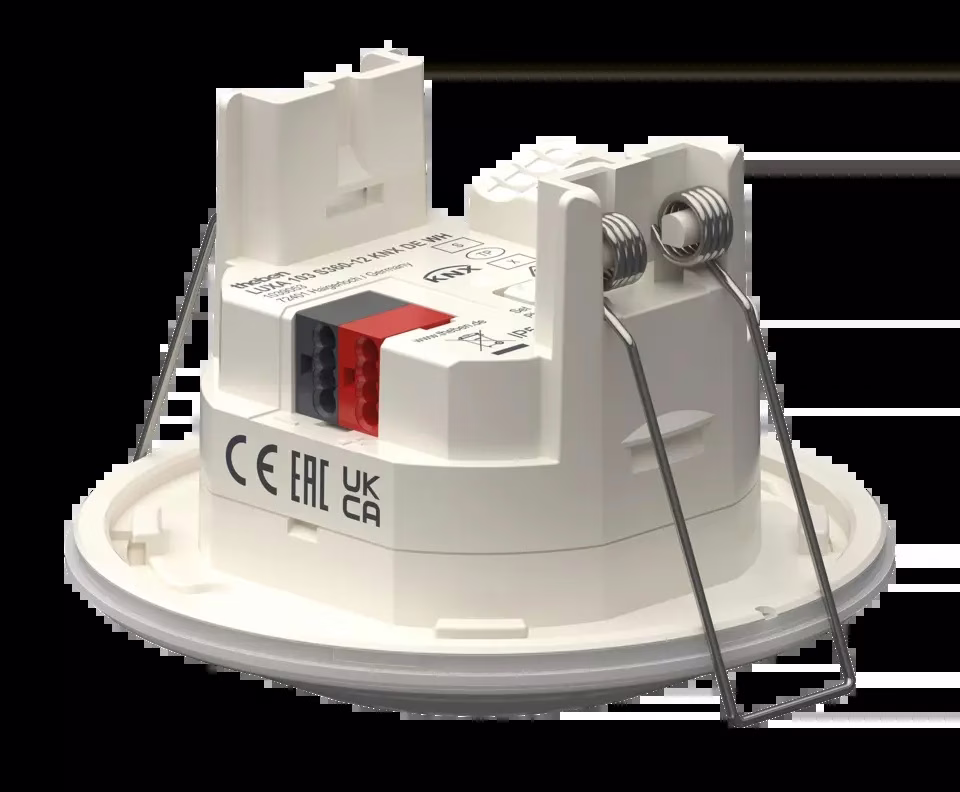

KNX presence detector, ceiling mounting DE, 2 x light, 2 x presence, detection range 12 m
KNX klātbūtnes detektors, griestu stiprinājums DE, 2 x gaisma, 2 x klātbūtne, uztveršanas diapazons 12 m 90.88€109.96€ Bez PVNAr PVNgab.
Atpakaļ pie produktiem
KNX presence detector, ceiling mounting DE, 2 x light, 2 x presence, detection range 28 x 5 m for corridors
KNX klātbūtnes detektors, griestu stiprinājums DE, 2 x gaisma, 2 x klātbūtne, atklāšanas diapazons 28 x 5 m koridoriem 119.04€144.04€ Bez PVNAr PVNgab.
KNX presence detector, ceiling mounting flush-mounted, DE/AP with accessories, 2 x light, 2 x presence, detection range 28 x 5 m for corridors - Attēls 1
KNX presence detector, ceiling mounting flush-mounted, DE/AP with accessories, 2 x light, 2 x presence, detection range 28 x 5 m for corridors - Attēls 2
KNX presence detector, ceiling mounting flush-mounted, DE/AP with accessories, 2 x light, 2 x presence, detection range 28 x 5 m for corridors - Attēls 3
Noklikšķiniet, lai palielinātu
KNX presence detector, ceiling mounting flush-mounted, DE/AP with accessories, 2 x light, 2 x presence, detection range 28 x 5 m for corridors
KNX presence detector, ceiling mounting flush-mounted, DE/AP with accessories, 2 x light, 2 x presence, detection range 28 x 5 m for corridors - Attēls 2
KNX presence detector, ceiling mounting flush-mounted, DE/AP with accessories, 2 x light, 2 x presence, detection range 28 x 5 m for corridors - Attēls 3

KNX klātbūtnes sensors griestu montāžai, iegremdējamais, DE/AP ar piederumiem, 2 x gaisma, 2 x klātbūtne, atklāšanas diapazons 28 x 5 m koridoriem

SKU: T1039072

119.04€144.04€ Bez PVNAr PVNgab.

Nav noliktavā

Pievienot vēlmju sarakstam
Pievienot salīdzināšanai
Sazinieties ar mumsNav pieejams
0 Cilvēki skatās šo produktu tagad!
Papildu informācija
Svars 0.09 kg
Dimensijas 82.0 × 82.0 × 72.0 mm
Ražotājs

Theben AG
EAN

4003468101988

Apraksts

Presence detector (PIR) for flush-mounted ceiling installation indoors (DE/AP with accessories), detection range 28 x 5 m at 3 m installation height for corridors, for KNX bus system, 2 channels for lighting and 2 channels for presence for HVAC control, 2 channels for lighting with 1 light measurement, automatic lighting control with constant light control or switching mode, dimmable lighting in switching mode with and without daylight influence, integrated temperature sensor, day/night switching via telegram, standby functionality (orientation light), 3 logic channels (AND/OR/XOR), KNX Data-Secure, operation as full or semi-automatic possible, manual override via external KNX button possible, directional brightness measurement (mixed light measurement), easy adjustment of brightness measurement, short-term presence, selectable control speed, Teach-in function, scene functionality, lock functions, switch-on delay and follow-up time presence adjustable, extension of the detection range through parallel connection, detection sensitivity adjustable for outdoor use, test mode for checking function and detection range, setting via ETS software (full range of functions), setting via remote control/APP or APP (BLE)

Lejupielādēt vairāk informācijas

Vairāk informācijas

Datu lapa:
Skatīt
