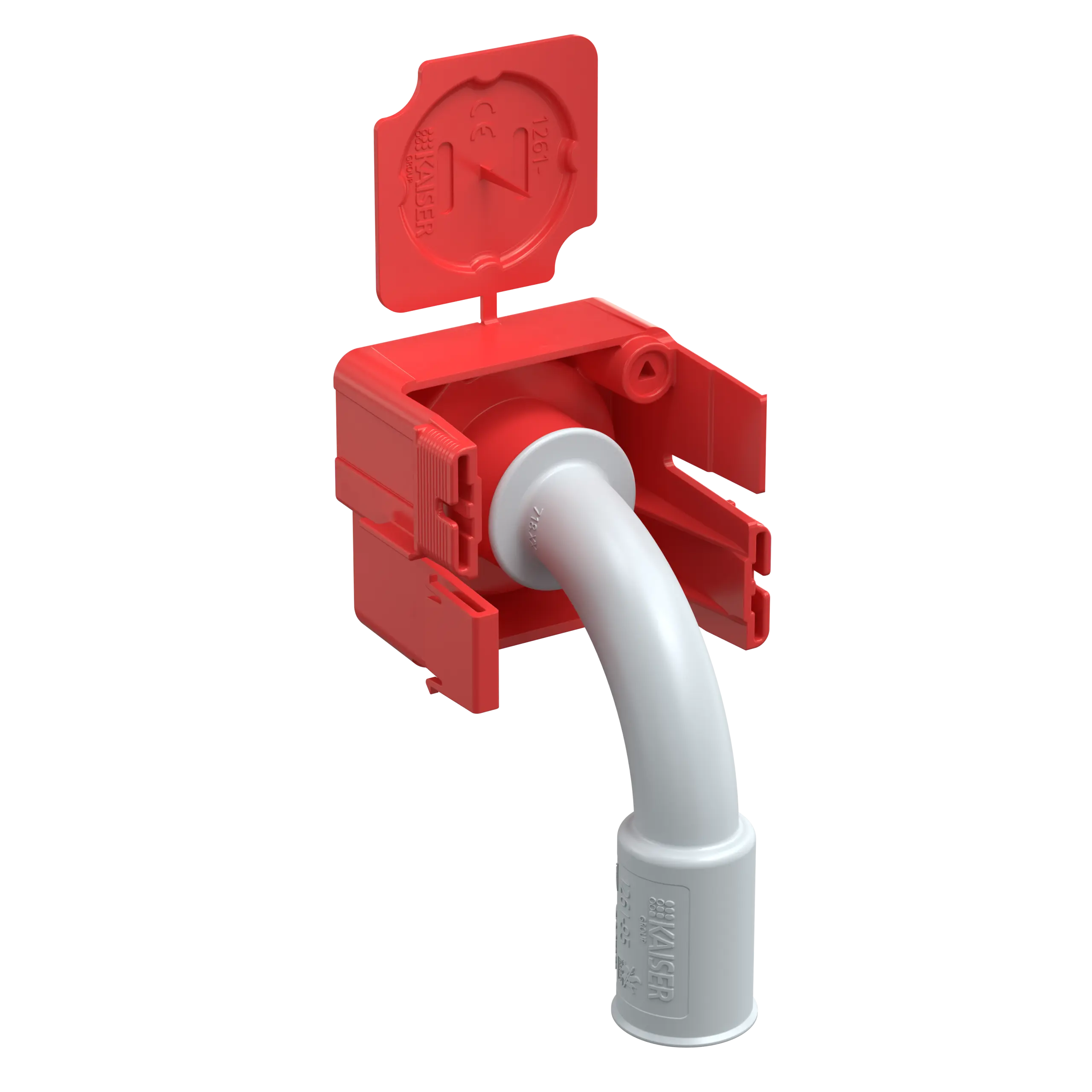

Wall and ceiling transitions
For the first time, the new end and transition grommets, wall and ceiling bends , 30°, and wall and ceiling transitions 90° allow the automated positioning and fastening of conduit connections in precast concrete elements. The integrated slot for the system magnets (Art. No. 1299-69) and system magnet PLUS (Art. No. 1299-70) enables a safe, formwork-flush fit on the horizontal steel formwork for the circulation systems used in the concrete plants. The new items also provide alternative options for fixing to formwork. They can be fixed using hot glue, steel nails and even for overhead installation in solid wall elements using Prefix® Universal supports (Art. No. 1261-00).
Slot for system magnet (Art. No. 1299-69) and system magnet PLUS (Art. No. 1299-70) for use in automated production lines
For conduit sizes of Ø 20 mm, Ø 25 mm and Ø 32 mm
All end and transition grommets, wall and ceiling elbows 30° and wall and ceiling transitions 90° can be combined with each other
Resealable sealing cover to protect the empty conduit system from concrete when installed on top, during transport and when erected on site
Signal bristle and bold colouring for easy retrieval in the concrete surface
Optimal elbow radius for easy cable insertion
1-part design, immediately ready for use
