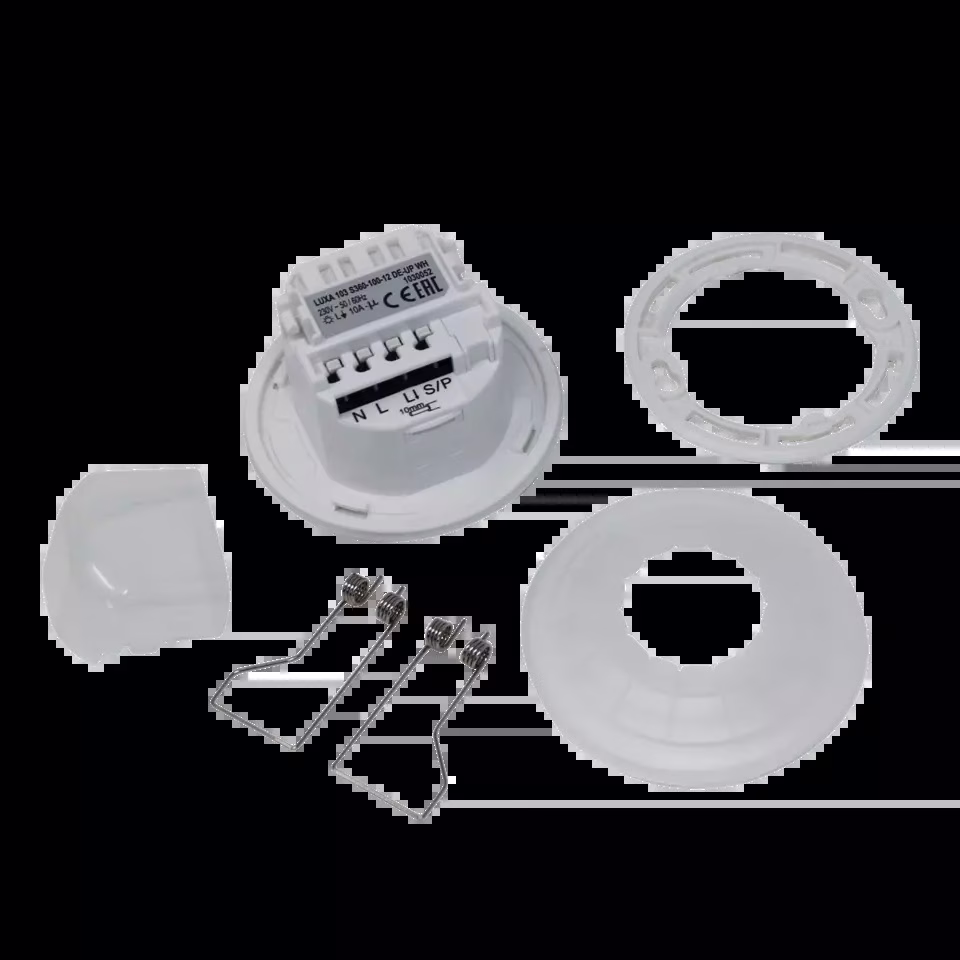

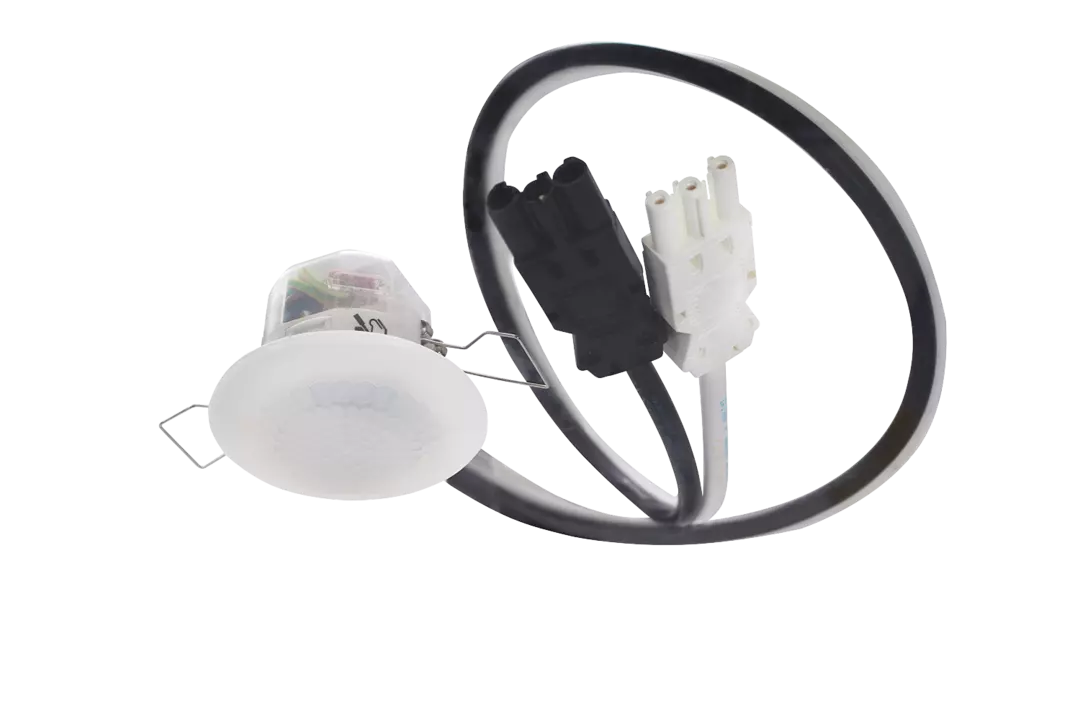

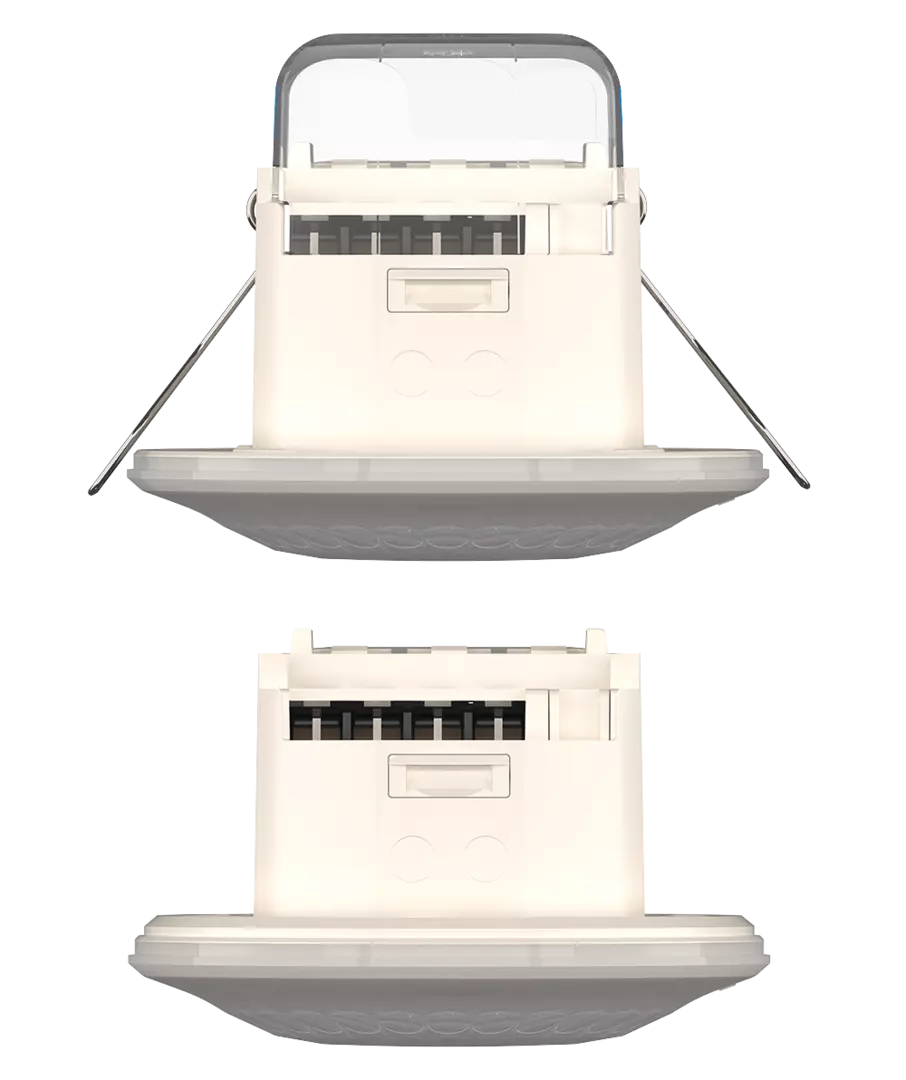

Passive infrared presence detector for flush-mounted ceiling installation or ceiling installation, round detection area 360°, diameter 12 m, (113 square Meters) at 3 m installation height (transverse), diameter 5 m, (20 square Meters) at 3 m mounting height (seated), 1 channel light (230 V relay) and 1 channel presence (potential-free relay for HVAC control), protection class IP 54 also suitable for use in damp rooms and outdoors (outdoor detection range 8 Meters diameter), Remote controllable, parallel connection with other LUXA 103 or theMura slave possible, switching capacity optimized for LEDs up to 400 W, semi-automatic or fully automatic operation, integrated push-button input, with pulse function, teach-in function, test function, and staircase lighting function, range restriction possible with cover clips, housing color white
